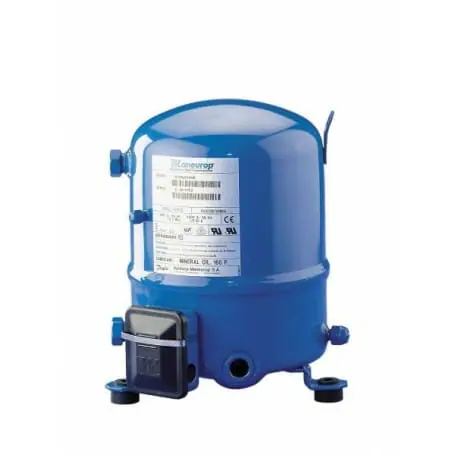

MTZ040 – 3.5HP MANEUROP HERMETIC COMPRESSOR – REFURBISHED
Maneurop reciprocating compressors from Danfoss Commercial Compressors are specially designed for applications with a wide range of operating conditions. All components are of high quality and precision in order to ensure a long product life. Maneurop MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.
Description
They operate with multiple refrigerants including R22, R407C, R134a, R404A and R507A, using 160PZ polyester oil as lubricant. The standard footprint of the range as well as their compact design makes these compressors ideal in the replacement market for split and packaged air-conditioners. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors make this an exceptionally long-lasting compressor.
Cylinder count: 1
Displacement [m³/h]: 11,81
Cylinder capacity [cm³]: 67,9
RPM [min-1]: 2900
Weight [kg]: 26
Oil charge [dm³]: 1
Oil type: 160PZ
Crankcase heater type: PTC 35 W
Maximum system test pressure low side / high side: 25/30
Maximum number of starts without softstart [1/h]: 12
Refrigerant charge limit [dm³]: 3
Refrigerant: R134a, 404A/R507, R407C
Sound power [dB]: 70
Sound power with accoustic hood [dB]: 65
Additional information
| Weight | 29 kg |
|---|---|
| Dimensions | 230 × 230 × 330 mm |
| Condition |
